In Stock
$16.95 USD

Product Specifications and Highlights

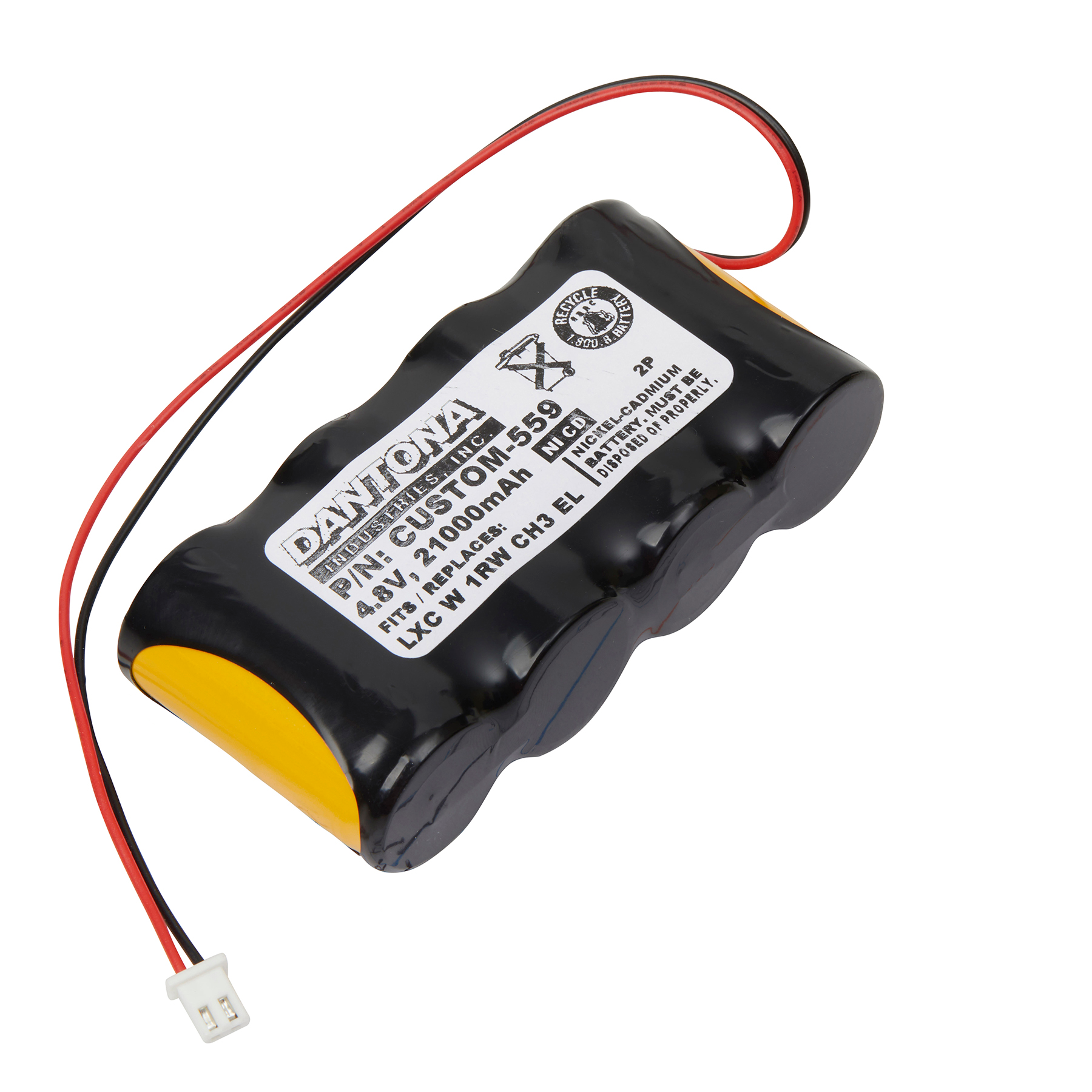

The Dantona CUSTOM-559 is a 4.8V, 2100mAh NiCd battery pack with a connector, used in emergency lighting. It cross-references to Lithonia G3647847.

The pack holds four cells in a 4S1P series string and is rated at 10.08 Wh. It measures 3.6 x 0.8 x 1.8 in (91.4 x 20.3 x 45.7 mm), length x width x height, and weighs 8 oz (227 g). Match the 4.8V rating and the connector on the battery being replaced before ordering. Order the Dantona CUSTOM-559 from Batteries.net.

Key features

  • 4.8V, 2100mAh rechargeable NiCd battery pack, rated at 10.08 Wh, with a connector termination.
  • Four cells wired in a 4S1P series string make up the Dantona CUSTOM-559 4.8V NiCd pack.
  • Measures 3.6 x 0.8 x 1.8 in (91.4 x 20.3 x 45.7 mm) and weighs 8 oz (227 g).
  • Cross-references to Lithonia G3647847; compare that number with the part number on the battery pack being replaced.
  • Used in emergency lighting as a 4.8V, 2100mAh NiCd battery pack with a connector termination.

Specifications

Dantona part number CUSTOM-559
Chemistry NiCd
Voltage 4.8 V
Capacity 2100 mAh
Watt hours 10.08 Wh
Cell count 4
Configuration 4S1P
Dimensions 3.6 x 0.8 x 1.8 in (91.4 x 20.3 x 45.7 mm)
Weight 8 oz (227 g)
Termination Connector
Rechargeable Yes
Cross-references Lithonia G3647847
Cross-reference list Lithonia - G3647847, Unitech - SC2000MAH 4.8V

Frequently asked questions

Which part numbers does the Dantona CUSTOM-559 replace?

The Dantona CUSTOM-559 cross-references to Lithonia G3647847. It is a 4.8V, 2100mAh NiCd battery pack with a connector, used in emergency lighting. It holds four cells in a 4S1P series string and is rated at 10.08 Wh.

How many cells are in the Dantona CUSTOM-559?

The Dantona CUSTOM-559 contains four NiCd cells in a 4S1P series string. The pack is rated 4.8V, 2100mAh and 10.08 Wh and has a connector termination. It is used in emergency lighting.

What are the dimensions of the Dantona CUSTOM-559?

The Dantona CUSTOM-559 measures 3.6 x 0.8 x 1.8 in (91.4 x 20.3 x 45.7 mm), length x width x height, and weighs 8 oz (227 g). It is a 4.8V, 2100mAh NiCd battery pack with a connector.

Volt: 4.8
Capacity: 2100 mAh
Chemistry: Nickel Cadmium
Number Of Cells: 4
Termination: Connector
Watt Hours: 10.08Wh
Dimensions: L :3.6 in x W: 0.8 in H: 1.8 in
Weight: 0.0 lb
